EUROLITE LED BC-6 Beam effect
DMX LED beam effect for spectacular mirror ball effects
- Clear, faceted surface provides for unique beam effects
- Equipped with bright red, green, blue, amber and white LEDs
- 10 to 50 rotations (180°) per minute produce circular light plays
- Operable in stand-alone mode or via DMX
- DMX-512 control possible via any commercial DMX-controller (occupies 9 channels)
- Sound-control via built-in microphone

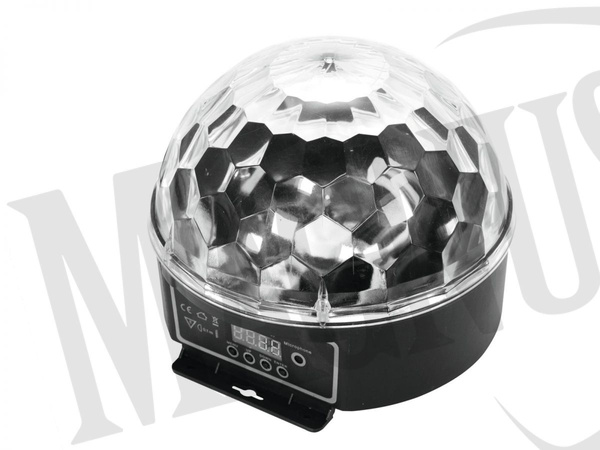

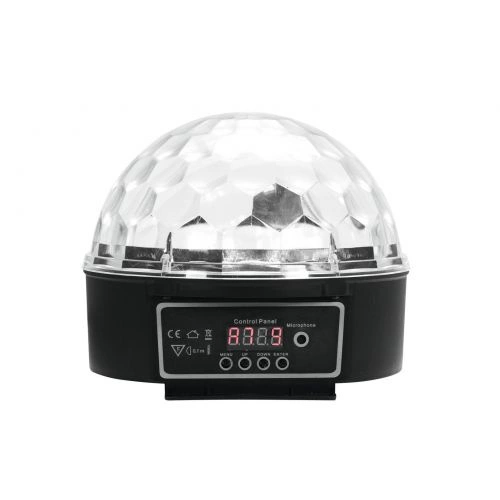

- Comfortable addressing and setting via control panel with 4-digit LCD screen and four operating buttons
- Functions: stepless color change; color fade; internal programs; dimmer, strobe settings, rotation direction and speed adjustable via stand-alone mode and via DMX; Master/Slave
- Memory function
- Plastic housing with mounting brackets
- Feed-through output allows to power up to 8 devices
- Switch-mode power supply for operation between 100 and 240 Volts
- Ready for connection via power cord with safety plug
Power supply: 100 V - 240 V AC, 50 - 60 Hz ~
Power consumption: 14 W
Number of DMX channels: 9

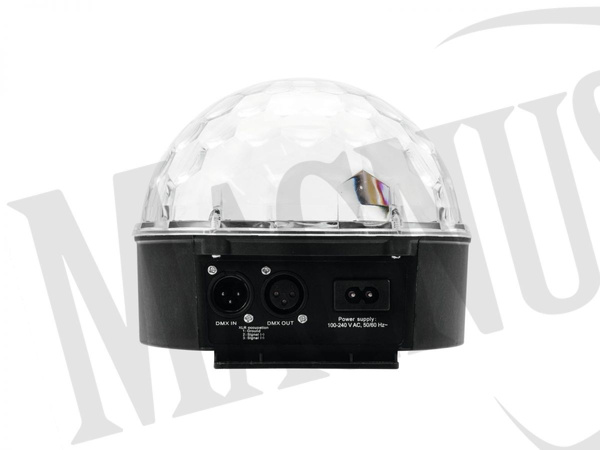

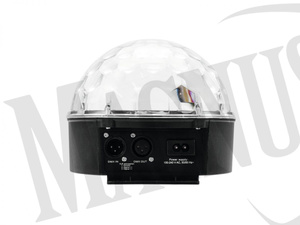

DMX512 connection: 3-pin XLR
Sound-control: via built-in microphone
Rotation speed: 10 to 50 180° rotations per minute
Rotation: 180°
LED type: 1 W
Number of LEDs: 2 x red, 1 x green, 1 x blue, 1 x amber, 1 x white
Dimensions (LxWxH): 185 x 185 x 150 mm
Weight: 0.5 kg
Energy efficiency class: O
Rated power: 6.00 W
Energy consumption: 6.00 kWh/1000h
